去毛刺倒圆拉丝机Deburring, edge rounding & surface finishing machine
根据工件材料、厚度、毛刺状态及表面要求，沟通适用配置与试样方案。Discuss configurations and workpiece trials based on material, thickness, burr condition and finishing requirements.
咨询这款设备Enquire about this machine技术参数Technical specifications
| 最大加工宽度Maximum working width (mm) | 800 |
|---|---|
| 加工厚度Workpiece thickness (mm) | 0.5–80 |
| 输送速度Feed speed (m/min) | 0.5–6 |
| 总功率Total power (kW) | 19 |
| 设备尺寸（长×宽×高）Dimensions (L × W × H) (mm) | 2400 × 2050 × 2200 |
| 重量Weight (kg) | 3500 |
| 电源Power supply | 380 V / 3-phase / 50 Hz |
设备功能与磨头配置Machine functions & head configurations
查看下列型录原页中的结构照片、加工样件与配置组合。不同组合的适用范围需要结合样件确认。See construction photos, processed samples and head combinations in the source pages below. Suitability must be confirmed through workpiece trials.

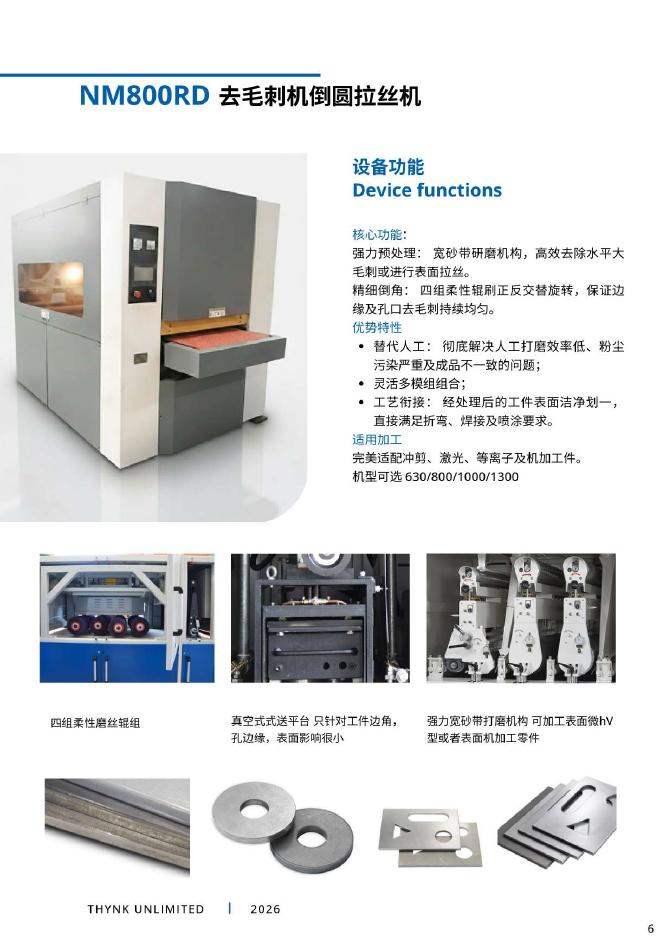

型录第 6 页：功能、参数与配置原图Catalogue page 6: functions, specifications and configurations

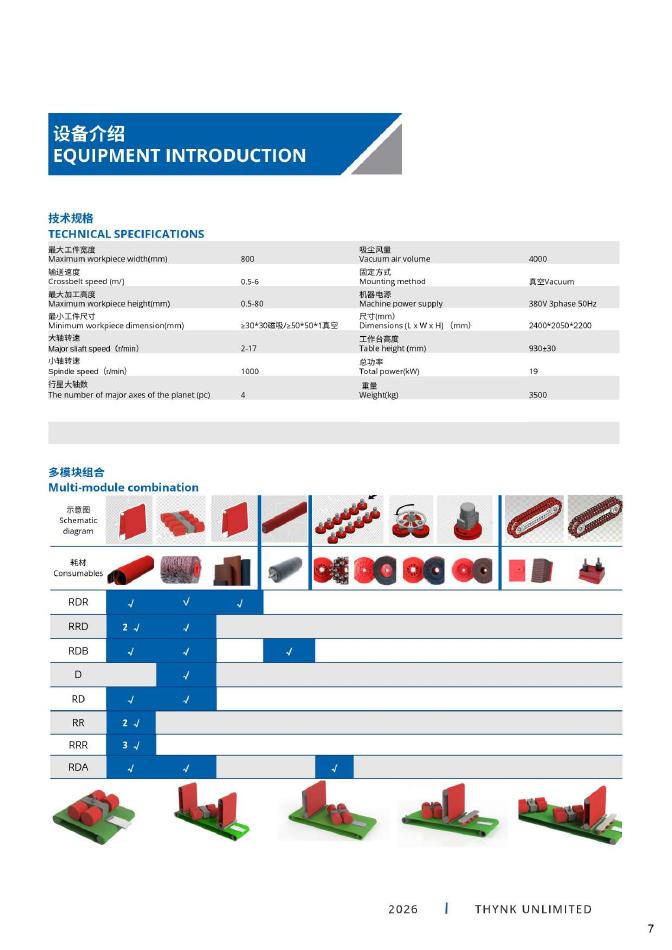

型录第 7 页：功能、参数与配置原图Catalogue page 7: functions, specifications and configurations
